An electrical wiring diagram is the working language of every industrial control panel project. The drawings that travel with a panel decide how quickly it can be installed, commissioned, audited, and maintained. For buyers and engineers who specify control cabinets, learning how to read industrial wiring diagrams is the fastest way to verify that what was built matches what was ordered.
This hub guide covers what a wiring diagram is, how the main diagram types differ, the symbols used on industrial drawings, and a five-step reading method. The companion guides—3-phase motor wiring diagrams, single-phase motor wiring diagrams, and control panel wiring diagram practice—cover each topic in depth.
What a wiring diagram is—and is not

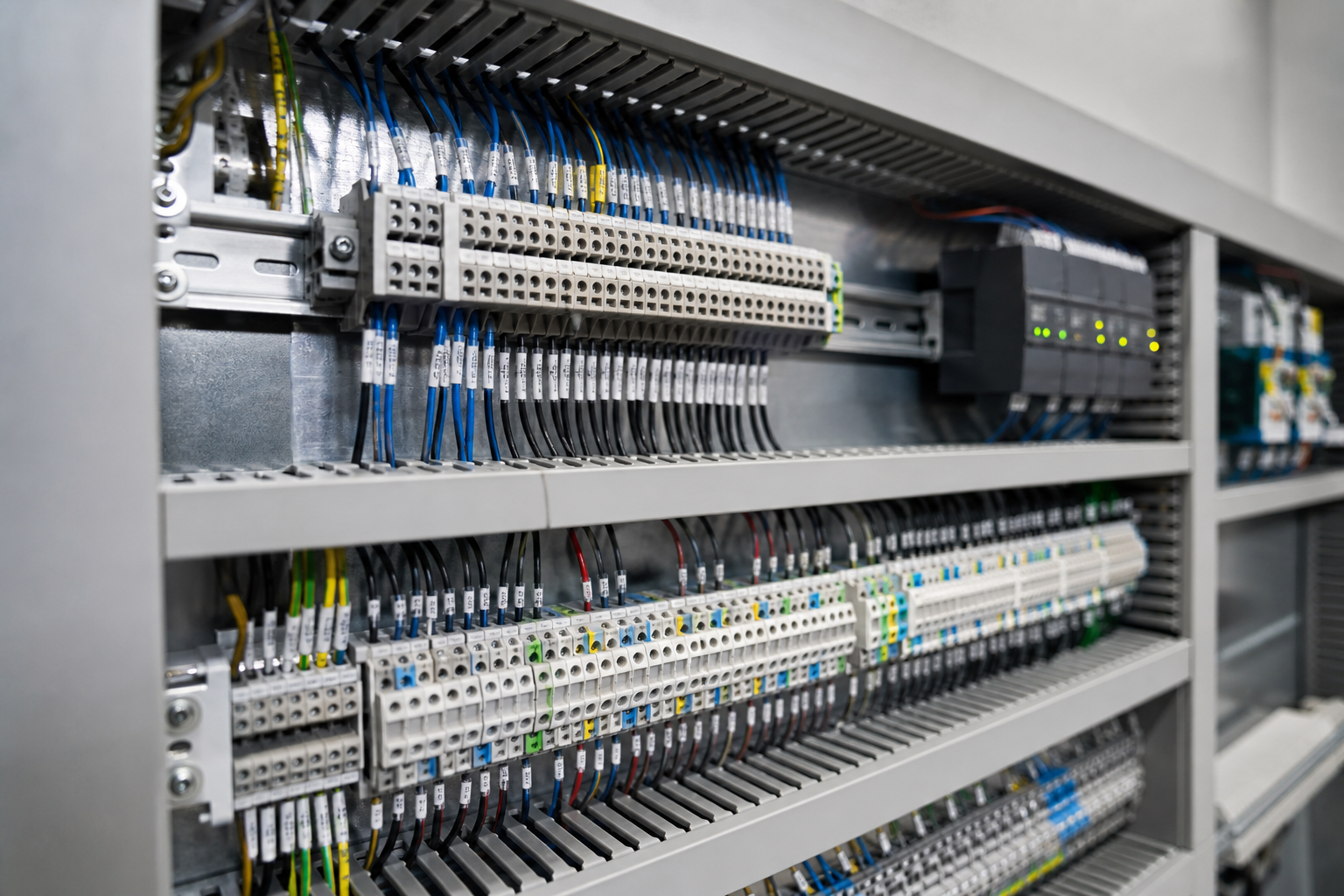

A wiring diagram shows how electrical devices are connected: which terminal joins which conductor, through which terminal block, and with which protective device in between. People also call it a wiring schematic, a connection diagram, or an electrical connections diagram—the wording varies by supplier and region, but the purpose is the same: to make every connection in a panel traceable.
Two boundaries matter. A wiring diagram is a representation, not a construction instruction: conductor sizes and protection ratings come from the project specification and applicable standards. And a generic diagram cannot establish the correct connections for your panel—real projects use drawings issued for that unit, as our industrial control panel wiring planning guide explains.
The four diagram types you will meet
Industrial documentation rarely uses a single drawing—four types dominate, and knowing which one you are holding is half of reading it correctly.
| Diagram type | What it shows | Typical use |
|---|---|---|
| Single line diagram (SLD) | One line per three-phase circuit; devices shown as standard symbols | Power distribution overview, switchgear and substation planning |
| Schematic (circuit or three-line diagram) | All conductors and contacts drawn line by line, power and control circuits | Engineering review, commissioning, fault finding |
| Wiring (connection) diagram | Point-to-point connections with terminal numbers and wire labels | Assembly, wiring verification, maintenance |
| Ladder (elementary) diagram | Control logic between two power rails, rung by rung | PLC and relay logic review, troubleshooting sequences |
The single line diagram trades detail for structure—a full schematic restores every pole and auxiliary contact. North American practice leans on ladder diagrams; IEC practice leans on schematics, but both describe the same hardware.
How to read an electrical wiring diagram: five steps
Whether you are reading a simple wiring diagram for a small panel or a full drawing set for a motor control center, the same five-step method applies:
1. Identify the drawing type and title block. Check the drawing number, revision, and date first. An out-of-date drawing causes more commissioning errors than any symbol misread.
2. Trace the power path from left to right. Follow the incoming supply through the main breaker, busbar or distribution blocks, and onward to each load. On a single line diagram this path is the whole drawing; on a schematic it is usually the upper section.
3. Separate power from control. Control circuits—buttons, relay coils, PLC I/O, interlocks—sit below or beside the power section and usually run at a lower voltage from a control transformer. Confusing the two sections is the classic beginner error.
4. Read each device by reference designator. Every component carries a tag: Q for breakers, F for fuses, K for contactors and relays, M for motors, T for transformers, S for switches, X for terminal strips, per IEC 81346. Numbered tags such as Q1, K2, F3 let you jump between the schematic, the wiring diagram, and the bill of materials.
5. Follow one complete loop before moving on. Pick a function—say, “start pump 1″—and trace it through the full loop: pushbutton, interlock contacts, coil, seal-in contact, overload contact. Reading complete loops one at a time turns a dense drawing into a short list of small circuits.
Electrical symbols cheat sheet
Industrial drawings worldwide follow two symbol systems: IEC 60617 (Europe and most of Asia) and ANSI/IEEE 315 (North America). The table below describes the symbols met most often in control panel work—practical recognition cues, with the complete symbol set taken from IEC 60617 or IEEE 315 itself.
| Component | IEC 60617 representation | ANSI/IEEE 315 representation | What it tells you |
|---|---|---|---|
| Circuit breaker (QF, MCB/MCCB) | Switch contact with a hook at the moving end ⏐¬ | Contact opening crossed by a line (×) | Short-circuit and overload protection; rated breaking capacity |
| Fuse (F) | Rectangle crossed by the conductor ⏛ | Rectangle or open frame with a bar through it | Short-circuit protection only; check rating and size class |
| Contactor power pole (KM) | Switch contact with a small overlaying mark | Contact with a circle or square overlay | Load switching; the coil that operates it sits in the control circuit |
| Relay / contactor coil (K) | Plain rectangle ◻ | Circle ○ or rectangle | The control-side element; every contact it operates carries the same tag |
| NO contact (make) | Open switch, no bar | Open contact | Closes to energize the function |
| NC contact (break) | Open switch with a bar across the gap ⌐— | Contact with a bar | Opens to stop or interlock; note fail-safe wiring |
| Thermal overload relay contact (F or FT) | Contact marked with a thermal-delay symbol | Contact with “OL” or heater element note | Motor overload protection; resets locally or remotely |
| Motor (M) | Circle with M (3~ for three-phase) Ⓜ | Circle with M or HP note | The driven load; rating plate data applies |
| Indicator lamp (H) | Circle with a cross ⊗ | Circle with a cross or “IL” | Status indication; voltage from the control circuit |
| Transformer (T) | Two coupled coil symbols ⧵⧵ | Two overlapping circles ◯◯ or paired coils | Voltage conversion, control supply, isolation, metering |
| Terminal (X) | Open circle ⚬ | Open circle ⚬ | Test and termination point; number matches the terminal schedule |
| Protective earth (PE) | Three descending bars ⏚ | Three descending bars ⏚ | Bonding and protective earthing connection |
Most manufacturers print a legend on the drawing itself—trust that legend when styles vary. Specialized drawings follow the same rules: a wiring diagram of a transformer uses the same coil symbols, and an electrical wiring diagram for lights uses the same luminaire and switch symbols as any panel lighting circuit.
Standards behind the drawings
Three families of standards shape industrial wiring documentation. IEC 60617 defines graphical symbols and IEC 61082 defines diagram composition. In North America, ANSI/IEEE 315 performs the symbol role and NFPA 79 sets documentation requirements: control drawings must identify devices, show conductor identification, and reflect the machine as actually built; IEC 60204-1 plays the equivalent role in Europe. The practical takeaway is a documentation checklist: ask your supplier for schematics, wiring diagrams, a terminal schedule, and a panel layout as deliverables. Our industrial control panel components guide maps the physical devices these drawings describe.
From diagrams to a real panel
Diagram literacy pays off at every project stage: reviewing quotations, checking protection coordination, supervising installation, and training maintenance staff. The companion guides cover the most requested drawings: three-phase motor starter and wiring diagrams, single-phase motor wiring diagrams, and control panel wiring diagram practice. For panel categories, see motor control panel types; for single line diagram reading in distribution, our low-voltage switchgear guide.
FAQ: reading wiring diagrams
How do you read an electrical wiring diagram for the first time?
Start with the title block and revision, trace the power path, separate the power section from the control section, then read one complete control loop at a time using the device tags as anchors. The five-step method above works for everything from a simple wiring diagram to a full motor control center drawing set.
Is a wiring diagram the same as a wiring schematic?
In everyday industrial use the terms overlap—wiring diagram, wiring schematic, electrical connections diagram, connection diagram often mean the same deliverable. Strictly, a schematic emphasizes how a circuit functions, while a wiring diagram emphasizes point-to-point connections with terminal numbers. Project documentation normally includes both.
What is a single line diagram used for?
A single line diagram (SLD, one-line diagram) compresses a three-phase system into one line per circuit, showing the distribution structure—incoming supply, transformers, breakers, busbars, major loads—with ratings annotated. It is the standard overview for switchgear and distribution reviews, and the natural first drawing in any panel project.
What is a ladder diagram in industrial control?
A ladder diagram, or logic ladder diagram, draws control logic between two vertical power rails; each rung is one rule, such as a start button contact in series with interlocks feeding a coil. Because the format mirrors relay hardware, it remains the common language for relay control and PLC logic on shop floors.
Which symbol standard will my diagrams use?
It depends on the supplier’s market: IEC practice uses IEC 60617 symbols with rectangle relay coils; North American drawings use ANSI/IEEE 315 symbols. Both are unambiguous once you know the family, and suppliers state which standard their drawing set follows.
What does NFPA 79 require for control drawings?
NFPA 79 requires machinery documentation to include control circuit diagrams that identify devices, show conductor identification, and correspond to the machine as actually built; IEC 60204-1 imposes equivalent duties in Europe. Both make the drawing set part of the deliverable with a compliant panel.
Can I get the wiring diagrams for a panel I order?
Yes—and you should. As-built schematics, wiring diagrams, and terminal schedules are standard deliverables for custom control panels. The wiring planning inputs guide lists the documents to request before production starts.
